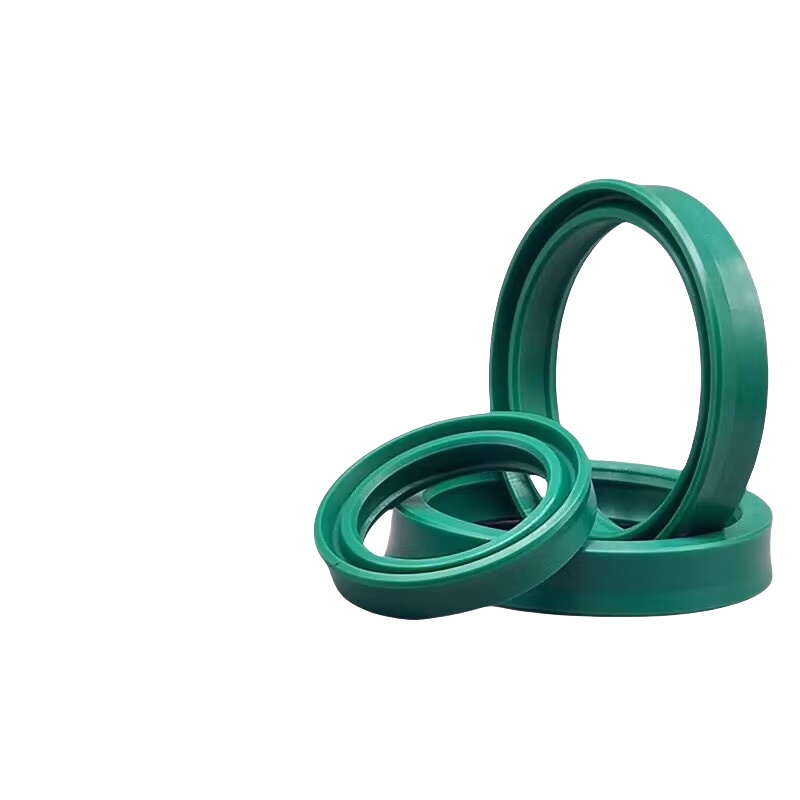

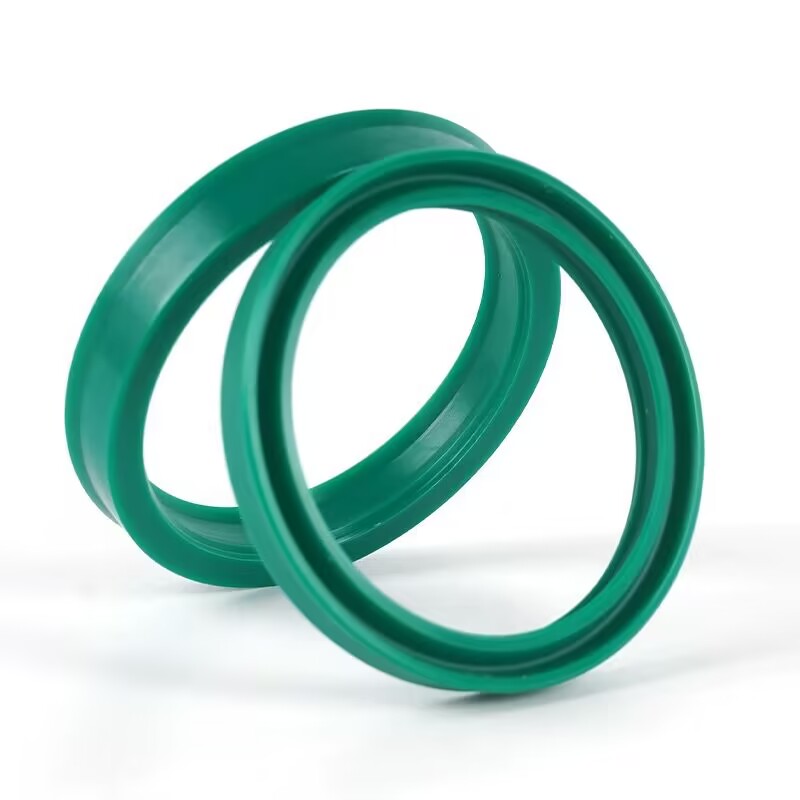

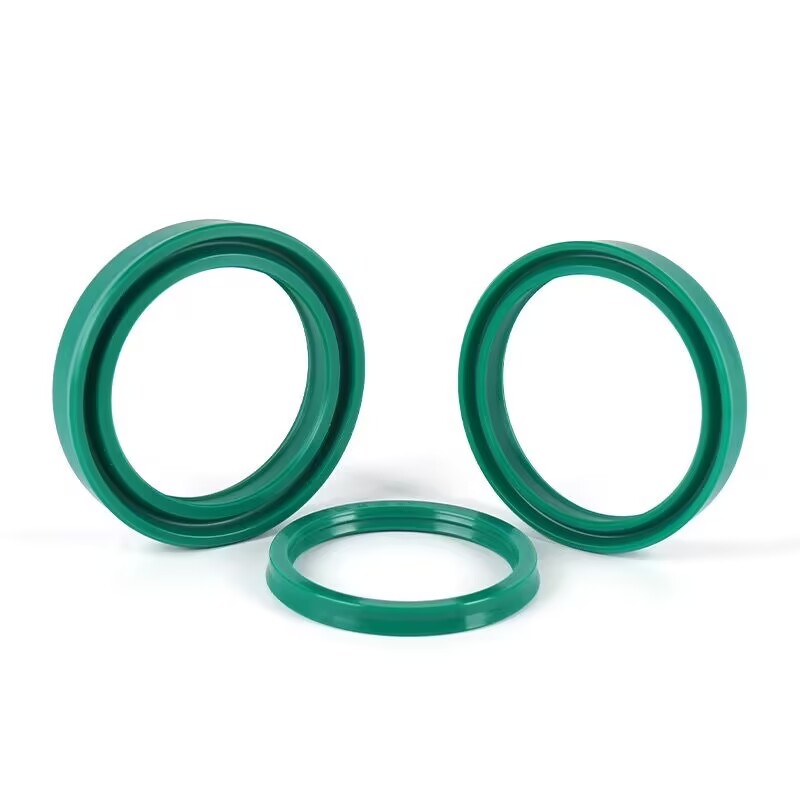

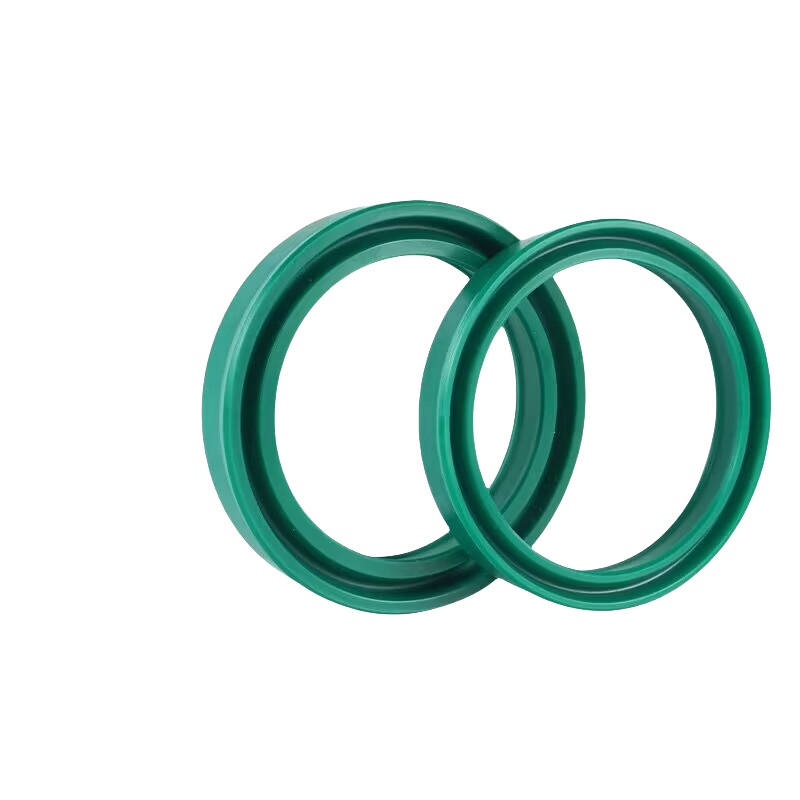

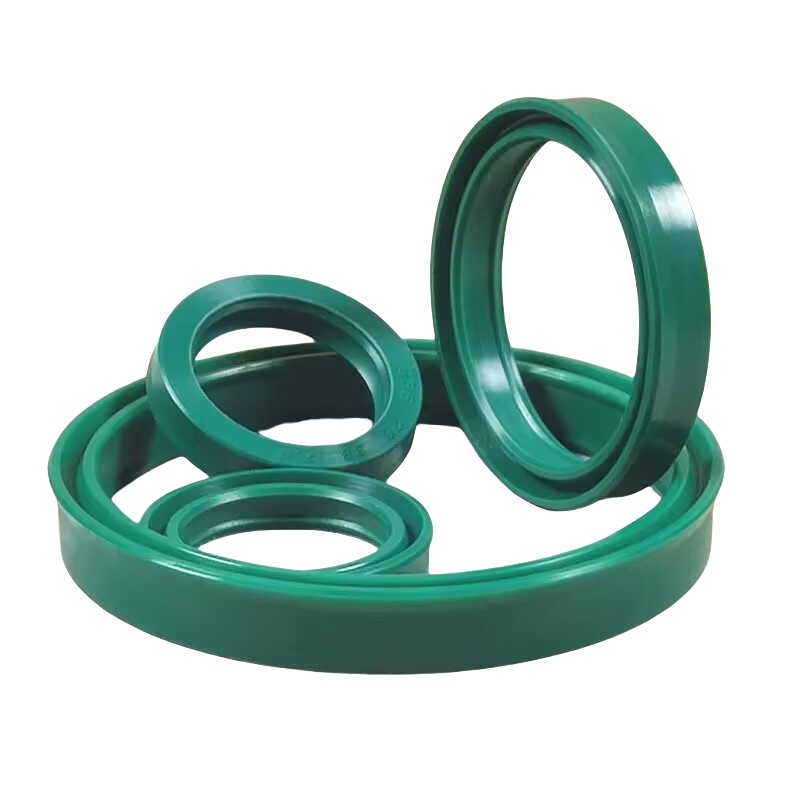

BS/UHR Rod seal

BS Rod seal

Products Model:

Products Keywords: Rod seal hydraulic seal piston seal

Products Description: Model :BS/UHR Rod U seal Material :CPU/TPU Hardness:90-95 Shore A Color : Green /Blue

Model :BS/UHR Rod U seal
Material :CPU/TPU
Hardness:90-95 Shore A

Color : Green /Blue

NO.	SIZE (mm)	NO.	SIZE (mm)	NO.	SIZE (mm)	NO.	SIZE (mm)	NO.	SIZE (mm)	NO.	SIZE (mm)	NO.	SIZE (mm)	NO.	SIZE (mm)
1	6x12x5	52	22x32x7.3	103	35x43x4.7	104	50x63x6	155	65x75x6	206	90x100x12	257	115x130x10	308	165.1x184.15x12.7
2	6x13x5	53	22x32x8	104	35x43x5.7	105	50x63x8	156	65x75x7	207	90x105x9	258	115x130x12	309	167x175x11.5
3	8x14x5	54	22.4x30x5	105	35x43x7	106	50x63x10	157	65x75x11.8	208	90x105x10	259	115x135x12	310	170x190x14.5
4	8x14x6	55	25x31x8	106	35x45x7.3	107	50x63x10	158	65x75x12	209	90x105x11.4	260	115x135x16	311	170x200x18
5	8x16x5.7	56	25x32x7	107	35x45x7.5	108	50x65x9	159	65x78x10	210	90x105x11.8	261	118x126x13	312	171x179x13
6	8x16x6	57	25x33x5	108	35x45x10	109	50x65x10	160	65x80x9	211	90x110x12	262	120x135x9	313	175x185x11.4
7	9x16x5.7	58	25x33x6	109	35x50x10	110	50x65x11.4	161	65x8011.8	212	90x110x15	263	120x130x11.4	314	176x186x12
8	10x16x4.5	59	25x33x6.5	110	35.5x50.5x10	111	50x65x11.5	162	65x85x12	213	92x107x11.4	264	120x130x14	315	177.7x198x9.73
9	10x17x5.7	60	25x33x7	111	36x43x7.3	112	50x70x12	163	67x77x6	214	92x107x11.5	265	120x130x17	316	177.8x195.28x9.5
10	10x18x5.7	61	25x33x8	112	36x44x5.7	113	52x62x10	164	68x78x12	215	95x105x11.4	266	120x135x9	317	177.8x197x9.5
11	10x18x8	62	25x35x6	113	36x46x7.3	114	53x63x10	165	68x78x7.3	216	95x110x9	267	120x135x14.5	318	180x188x11.5
12	10x20x5	63	25x35x7	114	36x46x10	115	55x63x10	166	70x78x8	217	95x110x10	268	120x140x15	319	180x190x9
13	10x20x6	64	25x35x7.3	115	36x51x10	116	55x65x6	167	70x80x6	218	95x115x12	269	125x133x11.5	320	180x190x11.4
14	11.2x19.2x5	65	25x35x8	116	37x47x7.3	117	55x65x7.3	168	70x80x7	219	97x105x13	270	125x135x9	321	180x197x9.5
15	12x18x6	66	25x45x10	117	37x47x10	118	55x65x8	169	70x80x11.5	220	100x108x12	271	125x135x11.4	322	180x200x12
16	12x19x5	67	25.4x31.75x6.3	118	38x48x6	119	55x65x10	170	70x80x12	221	97x105x13	272	125x140x12	323	180x200x14.5
17	12x20x5	68	26x36x10	119	38.1x47.36x6.35	120	55x65x11.4	171	70x83x10	222	100x108x12	273	120x140x14.5	324	180x200x15
18	12x20x5.7	69	28x34x8	120	40x48x6	121	55x65x11.8	172	70x85x9	223	100x110x9	274	120x140x15	325	180x205x18.2
19	14x21x5	70	28x35.5x5	121	40x48x8	122	55x65x12	173	70x85x10	224	100x110x10	275	125x133x11.5	326	190x210x12
20	14x22x5	71	28x35.5x5.7	122	4048x10	123	55x66x6	174	70x85x11.4	225	100x110x11.4	276	125x135x9	327	190x210x16
21	14x22x5.7	72	28x36x6	123	40x50x6	124	55x57x6	175	70x85x12.5	226	100x115x8	277	125x135x11.4	328	193x201x11.5
22	14x24x7.3	73	28x36x7	124	40x50x7	125	55x67x6	176	70x90x12	227	100x115x9	278	125x140x9	329	200x211x12
23	14x24x8	74	28x36x8	125	40x50x7.3	126	55x68x10	177	70x90x14	228	100x115x10	279	125x145x12	330	200x220x12
24	15x25x8	75	28x36x10	126	40x50x8	127	55x70x10	178	75x85x6	229	100x115x12	280	125x145x15	331	200x220x14.5
25	16x22x5	76	28x38x5.7	127	40x50x10	128	55x70x11.4	179	758x85x7	230	100x120x12	281	127x142.88x9.53	332	200x222x12.5
26	16x24x5.7	77	28x38x7.3	128	40x55x11.4	129	55x70x11.8	180	75x85x11.5	231	100x120x14.5	282	130x145x9	333	200x225x18.2
27	16x34x5.8	78	28x40x8	129	43x53x7.3	130	55x70x12	181	75x88x10	232	100x125x15	283	130x145x9	334	200x230x18
28	16x26x7.3	79	28x43x10	130	45x53x5.6	131	55x75x12	182	75x90x9	233	105x130x15	284	130x145x12	335	209.6x226.8x9.6
29	18x24x5	80	30x37x6	131	45x53x5.8	132	56x66x6	183	75x90x9.5	234	105x113x11.5	285	130x145x15	336	210x230x12
30	18x24x8	81	30x38x5.7	132	45x53x6	133	56x66x6.5	184	75x90x11.4	235	105x120x9	286	130x150x14.5	337	210x235x18
31	18x26x5	82	30x38x6	133	45x53x8	134	56x66x7.3	185	75x90x12	236	105x120x10	287	130x150x15	338	220x240x16
32	18x26x5.7	83	30x38x6.3	134	45x55x5.8	135	56x71x11.4	186	75x95x12	237	105x125x12	288	130x150x15	339	220x250x22.7
33	18x28x7.3	84	30x40x6	135	45x55x6	136	56x76x12	187	78x86x11.5	238	105x125x15	289	135x155x9	340	225x250x18
34	18x28x8	85	30x40x7	136	45x55x7	137	58x68x13	188	80x90x6	239	105x125x14.5	290	140x155x9.6	341	228.6x245.6x9
35	19x28x7	86	30x40x7.3	137	45x55x8	138	60x68x13	189	80x90x7	240	105x125x16	291	140x160x12	342	230x250x17
36	20x26x5	87	30x40x10	138	45x55x10	139	60x70x6	190	80x90x8	241	107x115x11.5	292	140x160x14.5	343	230x260x22.7
37	20x28x5	88	30x43x10	139	45x56x7	140	60x70x7.3	191	80x90x10	242	110x118x10.5	293	145x155x11.4	344	250x280x22.7
38	20x28x5.7	89	30x45x10	140	45x57x9.5	141	60x70x7.5	192	80x90x11.8	243	110x118x11.5	294	145x165x14.5	345	266.7x283.8x9.6
39	20x28x6	90	30x50x9	141	45x60x9	142	60x70x10	193	80x90x12	244	110x120x11.5	295	150x160x9	346	266.7x284x9.73
40	20x28.3x5	91	31x408	142	45x60x10	143	60x70x11.8	194	80x93x10	245	110x125x9	296	150x160x9	347	280x300x15
41	20x30x6	92	31.75x38.1x4.826	143	45x60x11.4	144	60x71x7	195	80x95x11.4	246	110x125x9.6	297	150x160x11.4	348	280x310x18
42	20x30x7.3	93	31.75x41.28x6.35	144	45x60x14	145	60x73x10	196	80x95x11.8	247	110x125x10	298	150x165x9	349	300x330x18
43	20x30x8	94	32x42x6	145	46x56x10	146	60x75x10	197	80x95x12	248	110x125x11	299	150x170x14.5	350	450x474x24
44	20x30x10	95	32x42x7	146	48x58x6	147	60x75x11.4	198	70x100x12	249	110x125x11.4	300	150x170x15
45	22x28x6	96	32x42x7.3	147	50x58x7.3	148	63x73x11.8	199	85x96x11.5	250	110x125x12	301	152.4x171.45x12.7
46	22x29x5	97	32x42x10	148	50x58x8	149	63x73x12	200	85x95x9	251	110x125x14.5	302	160x170x10.5
47	22x30x5	98	32x45x10	149	50x58x10	150	63x73x13	201	85x100x9	252	110x130x10	303	160x175x9
48	22x30x5.7	99	32x47x10	150	50x60x6	151	63x75x11.4	202	85x100x10	253	110x13012	304	160x175x9
49	22x30x6	100	32x48x10	151	50x60x7	152	63.5x76.2x9.53	203	85x100x12	254	110x130x14.5	305	160x175x12
50	22x30x7	101	34x45x6	152	50x60x7.3	153	64x72x9.1	204	85x105x12	255	112x125x9	306	160x180x12
51	22x30x8	102	35x42x6	153	50x60x10	154	65x73x11.5	205	90x98x11.5	256	115x130x9	307	160x180x14.5
