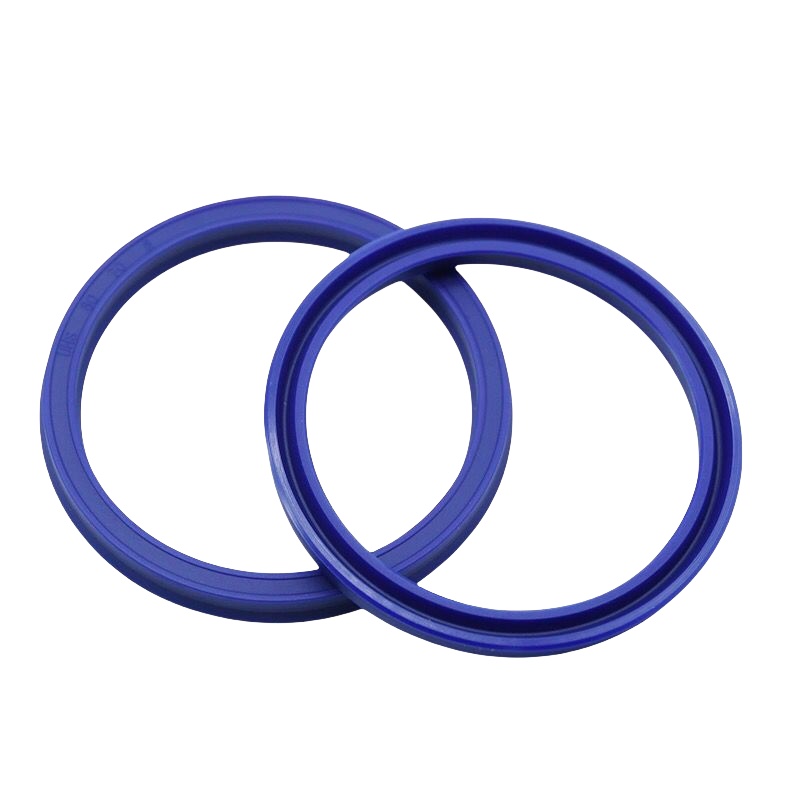

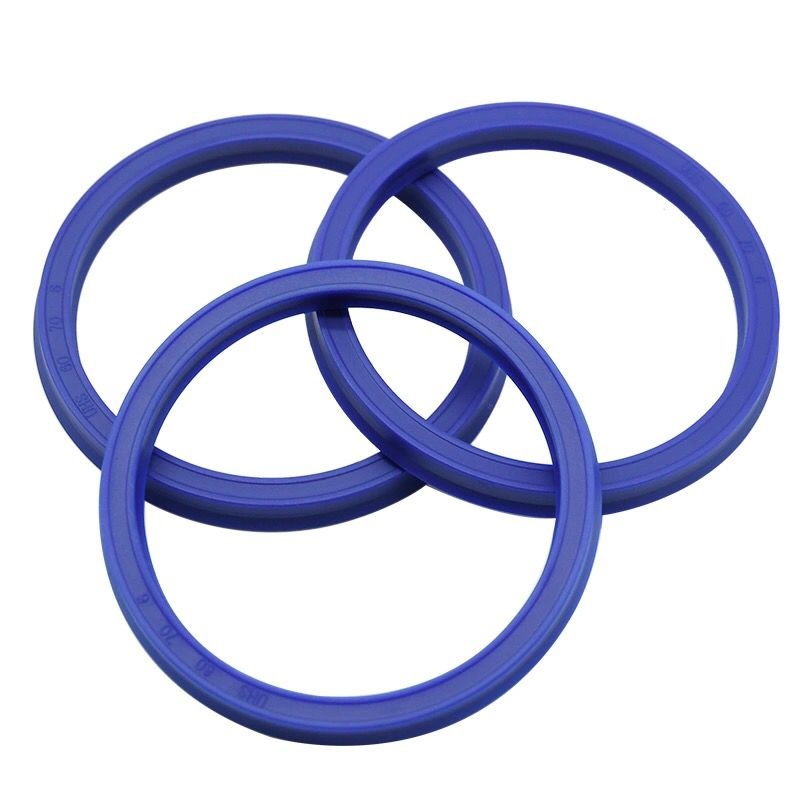

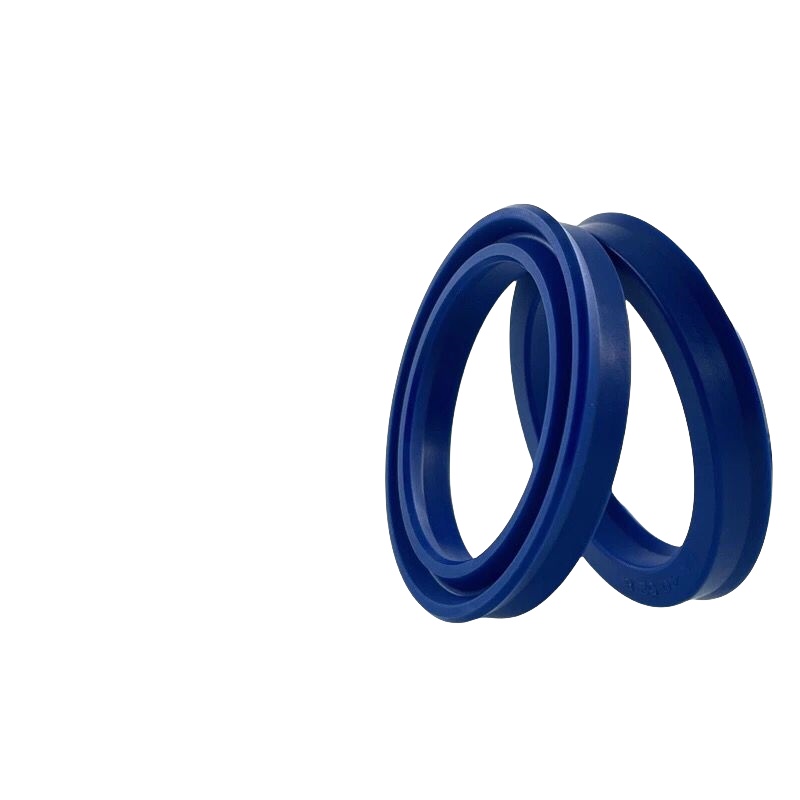

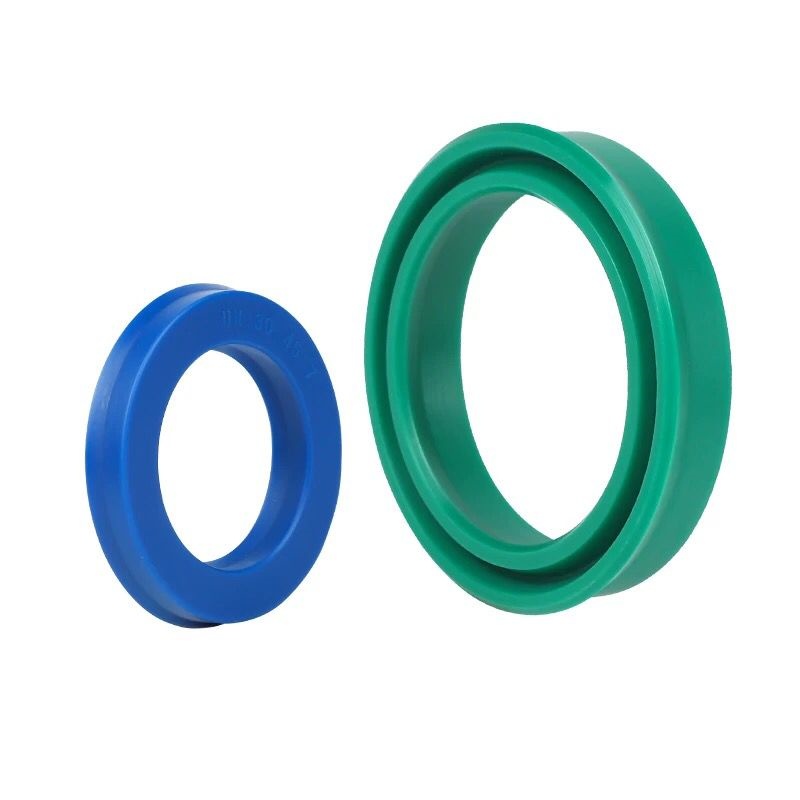

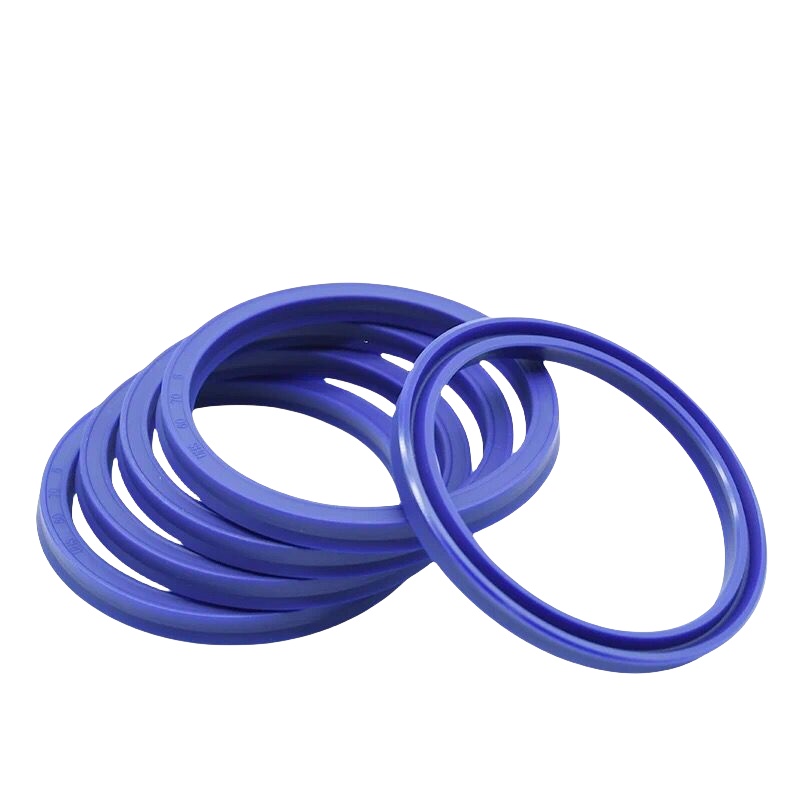

UHS Piston and Rod seal
Products Model: UHS
Products Keywords: hydraulic seals, rod seal ,piston seal ,mechanical seals ,guider seal ,UHS Seals
Products Description: Model: UHS seal Material : CPU/TPU Hardness: 90-95 ShoreA Color: Blue/Green/ Light yellow
Model: UHS seal
Material : CPU/TPU
Hardness: 90-95 ShoreA
Color: Blue/Green/ Light yellow
| No. | SIZE (mm) | No. | SIZE (mm) | No. | SIZE (mm) |
| 1 | 6x12x5 | 33 | 40x48x8 | 65 | 105x120x9 |
| 2 | 11.2x19.2x5 | 34 | 40x5x6 | 66 | 106x120x8.5 |
| 3 | 12.5x20.5x5 | 35 | 45x55x6 | 67 | 110x125x9 |
| 4 | 14x22x5 | 36 | 45x55x7 | 68 | 112x125x9 |
| 5 | 15x23x5 | 37 | 45x56x7 | 69 | 115x130x9 |
| 6 | 16x24x5 | 38 | 48x58x6 | 70 | 120x125x9 |
| 7 | 18x25x5 | 39 | 50x60x6 | 71 | 125x140x9 |
| 8 | 18x26x5 | 40 | 53x63x6 | 72 | 130x145x9 |
| 9 | 18x26.5x8 | 41 | 55x65x6 | 73 | 136x150x9 |
| 10 | 19x26x6.7 | 42 | 56x66x6 | 74 | 140x155x9 |
| 11 | 20x26x5 | 43 | 57x65x5 | 75 | 145x160x9 |
| 12 | 20x28x5 | 44 | 58x68x6 | 76 | 150x165x9 |
| 13 | 22x30x5 | 45 | 60x70x6 | 77 | 155x170x9 |
| 14 | 22.4x30x5 | 46 | 60x71x7 | 78 | 160x175x9 |
| 15 | 23.5x31.5x5 | 47 | 61x71x6 | 79 | 165x180x9 |
| 16 | 25x33x5.3 | 48 | 63x73x6 | 80 | 180x200x12 |
| 17 | 26x33x5 | 49 | 65x75x6 | 81 | 180x200x12.5 |
| 18 | 27x34x5 | 50 | 66x76x6 | 82 | 200x220x12 |
| 19 | 27x35x5 | 51 | 67x77x6 | 83 | 204x224x12 |
| 20 | 27x35x6 | 52 | 70x80x6 | 84 | 230x250x12 |
| 21 | 28x35.5x5 | 53 | 71x80x6 | ||
| 22 | 30x40x6 | 54 | 75x85x6 | ||
| 23 | 31.5x41.5x6 | 55 | 76x86x6 | ||
| 24 | 32x40x5.5 | 56 | 80x90x6 | ||
| 25 | 32z42x6 | 57 | 83.5x93.5x6 | ||
| 26 | 35x43x6 | 58 | 85x100x9 | ||
| 27 | 35x45x7 | 59 | 86x96x6 | ||
| 28 | 35.5x45x6 | 60 | 88x98x6 | ||
| 29 | 36x46x9 | 61 | 90x105x9 | ||
| 30 | 38x46x9 | 62 | 95x110x9 | ||
| 31 | 38x48x6 | 63 | 98x112x9 | ||
| 32 | 38x46x6 | 64 | 100x115x9 |
More sizes ,please send inquiry to us by email : info@kingtopcn.com
